Airliner · Civil · United States

Convair 880

Compare

January 27, 1959
First flight
1960
Introduced
1993
Retired
65
Units built

The Convair 880 was an American narrow-body jet airliner that first flew on 27 January 1959 and entered service with Delta Air Lines in 1960. Marketed on sheer speed, it proved a commercial failure, with only 65 aircraft built.

Continue to Technical data →

Continue to History →

History

In the late 1950s the Convair division of General Dynamics chose an unusual strategy for entering the jet age: rather than matching the Boeing 707 and Douglas DC-8 in size, it would sell a slightly smaller airliner that flew faster. The Convair 880 embodied that bet, making its first flight on 27 January 1959 and being promoted as the fastest jet transport in the world, with a quoted 615 mph enabled by four General Electric CJ-805 turbojets.

Delta Air Lines introduced the type in 1960, but the niche Convair had counted on never appeared. The five-abreast cabin, sized for around 110 passengers, held little appeal for airlines that cared more about seat count than about shaving minutes off a sector, and orders dried up in the face of the Boeing and Douglas competition.

Convair 880

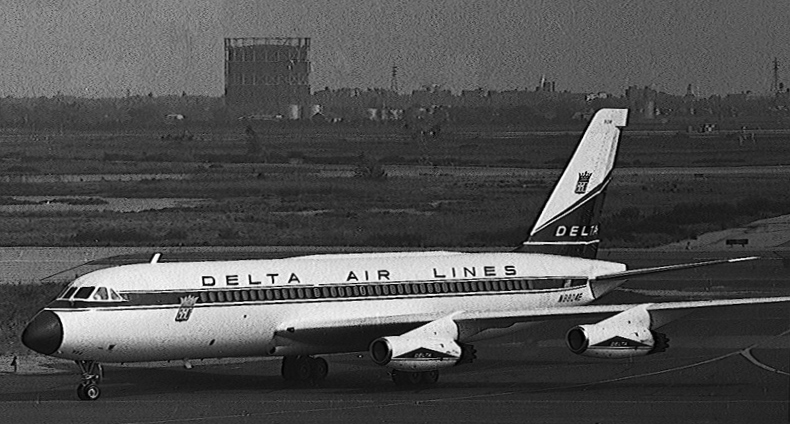

N8804E Delta Air Lines Convair CV-880

Production ended in 1962 after just 65 aircraft, and the programme contributed to losses for General Dynamics estimated at 185 million dollars, one of the costliest miscalculations of the early jet era. The surviving 880s soldiered on in secondary roles until the type was finally retired in 1998.

Continue to Variants →

Variants

880 (Model 22)880-M (Model 22-M)UC-880
First flightJanuary 27, 1959October 3, 1960—
Aircraft typeMedium-haul airlinerMedium-haul airlinerTest tanker aircraft
PowerplantFour General Electric CJ805-3 turbojets of 49.8 kN each (11,200 lbf for take-off), civil derivatives of the military J79 with a 17-stage axial compressor and a three-stage turbine.Four General Electric CJ805-3B turbojets of 51.8 kN each (11,650 lbf for take-off), the uprated version of the CJ805-3.Four General Electric CJ805-3B turbojets of 51.8 kN each, the same engines as the 880-M it was converted from.
Powerplant4 × General Electric CJ805-34 × General Electric CJ805-3B4 × General Electric CJ805-3B
Thrust per engine49.8 kN51.8 kN Best value in this row51.8 kN Best value in this row
Length39.4 m Best value in this row39.4 m Best value in this row—
Wingspan36.6 m Best value in this row36.6 m Best value in this row—
Height11.1 m Best value in this row11.1 m Best value in this row—
Wing area186 m² Best value in this row186 m² Best value in this row—
Empty weight39,643 kg Best value in this row42,638 kg—
MTOW83,688 kg87,543 kg Best value in this row—
Top speed990 km/h Best value in this row990 km/h Best value in this row—
Max speed altitude6,858 m6,858 m—
Cruise speed870 km/h Best value in this row870 km/h Best value in this row—
Cruise altitude6,858 m6,858 m—
Service ceiling12,497 m Best value in this row12,497 m Best value in this row—
Initial climb rate18.9 m/s Best value in this row18.1 m/s—
Range4,578 km4,635 km Best value in this row—
Ferry range5,050 km——
Combat radius0 km Best value in this row0 km Best value in this row0 km Best value in this row
Endurance373 min——
Range conditionsRange of 4,578 km in normal configuration; with maximum fuel at maximum take-off weight it reaches 5,050 km.Larger fuel tanks and leading-edge slats give it slightly more range than the original 880 and better take-off performance.—
ArmamentNoneNoneNone
Max weapons load0 kg Best value in this row0 kg Best value in this row0 kg Best value in this row
Payload10,886 kg Best value in this row10,886 kg Best value in this row—
Cargo capacityCabin seating 88 to 110 passengers depending on layout, five abreast in coach; maximum payload 10,886 kg.Same 88 to 110 seat cabin as the original 880, with a wider range of seat pitch adjustment and a simpler overhead locker arrangement.Single aircraft: an 880-M acquired by the US Navy in 1980 and converted into an in-flight refuelling tanker for the Naval Air Test Center at Patuxent River.
Crew3 Best value in this row3 Best value in this row3 Best value in this row
Passengers110 Best value in this row110 Best value in this row—
Units built48 Best value in this row171

Continue to Images →

Images

Convair 880
Convair 880, Marana, Arizona, 1990"Convair 880, Marana, Arizona, 1990" by In Memoriam: PhillipC is licensed under CC BY 2.0. To view a copy of this license, visit https://creativecommons.org/licenses/by/2.0/.
Convair 880
N8804E Delta Air Lines Convair CV-880
Convair 880

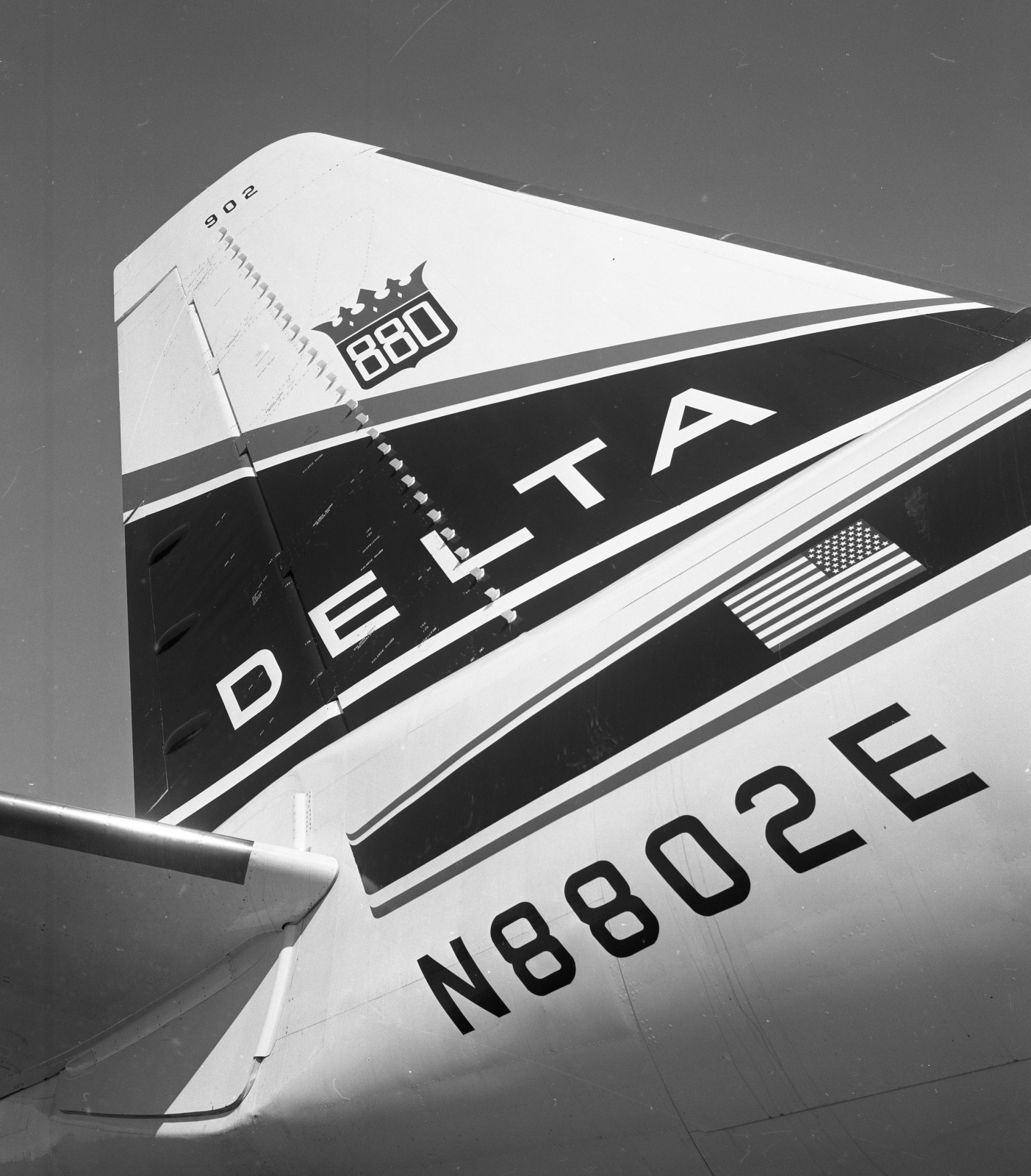

N88002E tail Convair CV-880 Delta 23 0036434 Convair Negative Image
Convair 880
N817TW Convair CV 880Aeroprints.com (CC BY SA), vía commons
Convair 880
Convair crew in 880 cockpit
Convair 880
Convair Mechanic Working on 880 engine
Convair 880
Convair CV-880 Civil Air Transport pre delivery photo
Convair 880
Convair 880 engineering team
Convair 880

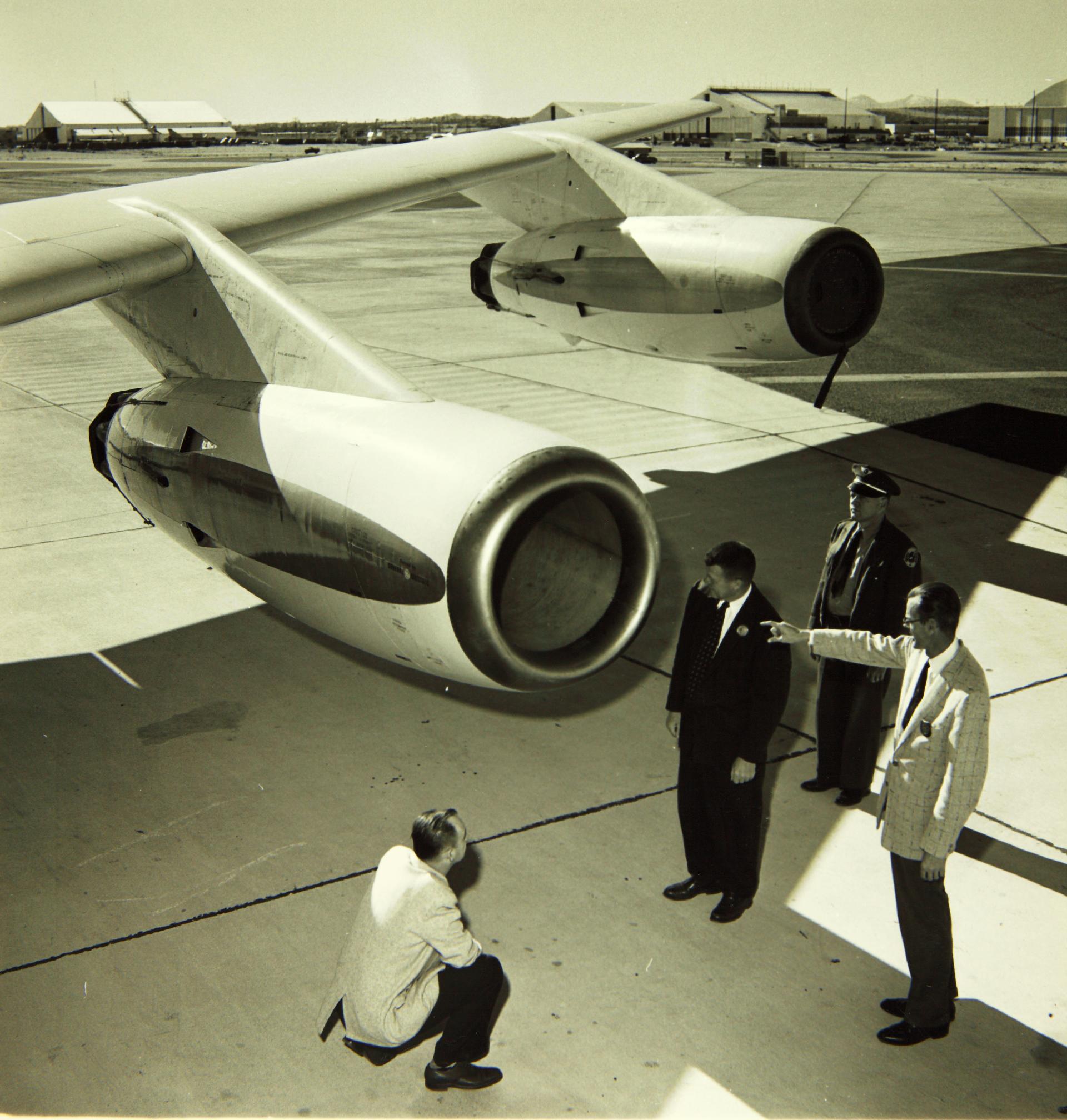

Convair 880 engine with engineers
Convair 880
Convair 880 Model
Convair 880
Convair 880 Lavatory
Convair 880
Convair 880 Flight Engineer Panel
Convair 880

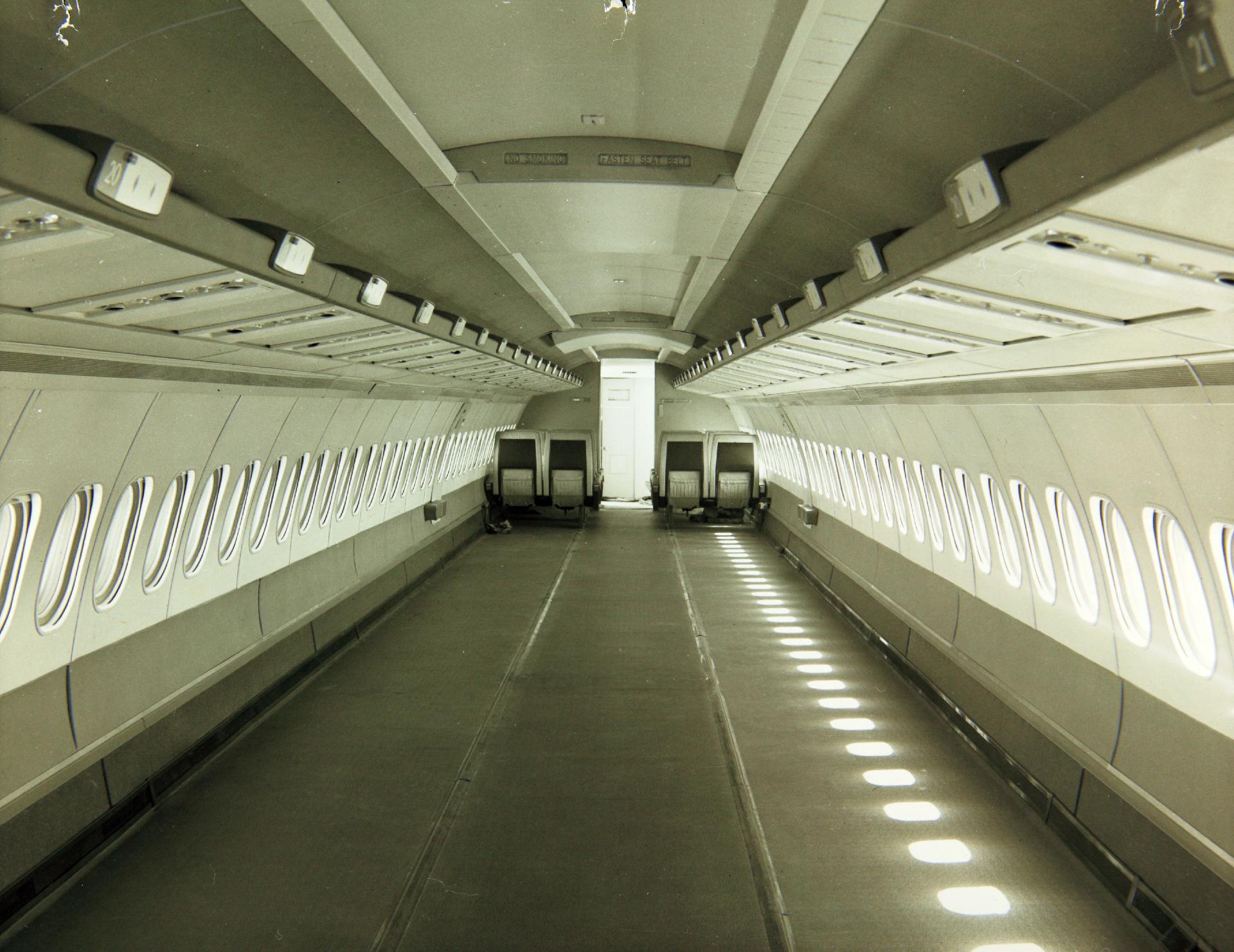

Convair 880 Empty Cabin
Convair 880
Convair 880 Delta Airlines jet engines 23 0036429 Convair Negative Image
Convair 880
Convair 880 Delta Airlines fuselage 23 0036433 Convair Negative Image
Convair 880
Convair 880 Delta Airlines 23 0036438 Convair Negative Image
Convair 880
Convair 880 Delta Airlines 23 0036431 Convair Negative Image
Convair 880
Convair 880 Delta Airlines
Convair 880
Convair 880 Delta 23 0036436 Convair Negative Image
Convair 880
Convair 880 Customer Stewardesses
Convair 880
Convair 880 Cockpit in Color
Convair 880
Convair 880 Civil Air Transport Interior
Convair 880
Convair 880 Cabin Coach
Convair 880
Convair 880 015-65 JDA 4Jan65
Convair 880
1973 08 18 HANEDA VR HGC Cathay Pacific Airways Convair CV-880
Convair 880
1973 06 10 HANEDA VR HGG Cathay Pacific Airways Convair CV-880
Convair 880
1973 04 14 HANEDA VR HGF Cathay Pacific Airways Convair CV-880
Convair 880

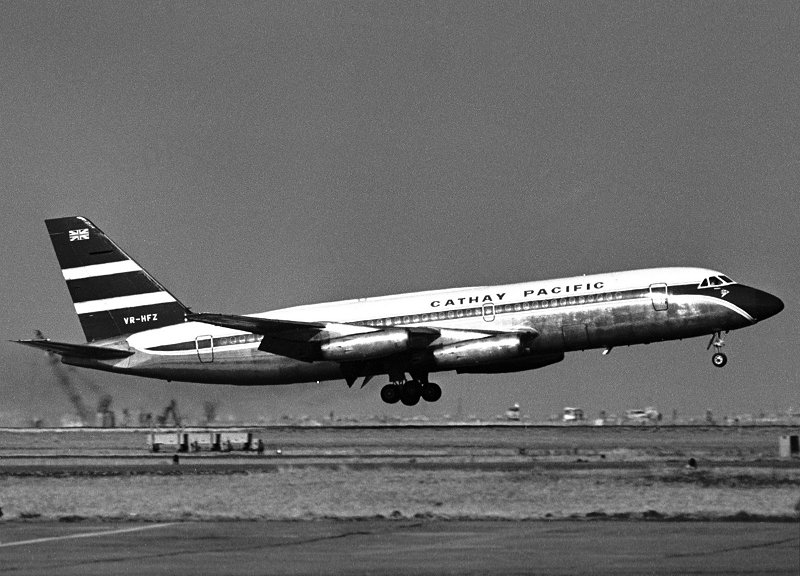

1971 03 06 HANEDA VR HFZ Cathay Pacific Airways Convair CV-880
Convair 880
1968 05 01 HANEDA VR HFY Cathay Pacific Airways Convair CV-880
Convair 880
1966 08 17 HANEDA VR HFX Cathay Pacific Airways Convair CV-880
Convair 880
Cockpit CV-880 DN ST-84-08656
Convair 880
Convair 880 Northeast Airlines N8483H
Convair 880
Convair 880 Civil Air Transport takeoff
Convair 880
Convair 880 N8807E Delto ORD 24 04 71 edited 3RuthAS (CC BY), vía commons
Convair 880
Convair 880 Civil Air Transport, nose
Convair 880
Convair 880 N8802E Delta ATL 15 04 72 edited 2RuthAS (CC BY), vía commons
Convair 880
Convair 880 Civil Air Transport in flight
Convair 880
Convair 880 N830TW TWA ORD 24 04 71 edited 3RuthAS (CC BY), vía commons
Convair 880
Convair 880 Japan Air Lines «Sakura», 7 Jul 1961 (3)
Convair 880
Convair 880 Japan Air Lines «Sakura», 7 Jul 1961 (2)
Convair 880
Convair 880 Delta Air Lines N8802E
Convair 880
Convair 880 (22-2) ANFelix Goetting (GFDL), vía commons
Convair 880
Convair 880 Japan Air Lines «Sakura», 7 Jul 1961
Convair 880
Convair 880M (22M-22) N88CH, Düsseldorf 1978Udo Haafke (GFDL), vía commons
Convair 880
23 0066569 Convair Negative Image - Convair 880 Trans World Airlines final production
Convair 880
Convair 880M (22M-22) N88CH, Basel Mulhouse 1977Eduard Marmet (CC BY SA), vía commons
Convair 880
Convair 880M (22M-3) N5858 (ex JA8026), Düsseldorf 1972Udo Haafke (GFDL), vía commons
Convair 880
Convair 880M (22M-3) N5858, ex JAL, Long Beach 1976Steve Williams (CC BY SA), vía commons
Convair 880
Convair 880 JA8025, Japan Air Lines, London Heathrow 2 Sep 1963Ken Fielding (CC BY SA), vía commons
Convair 880
Convair 880 VR HFS, Cathay Pacific, Haneda 1966
Convair 880
Convair 880-22M VR HGG, Cathay Pacific, Miami 1975RuthAS (CC BY), vía commons
Convair 880
Convair 880-22M VR HFZ, Cathay Pacific, Haneda 11 Feb 1972Frank Hudson (CC BY SA), vía commons
Convair 880
Right front view of the Navy UC-880 parked at the Patuxent River open house, used to develop F/A-18 refuelling techniques
Convair 880
Left front view of the UC-880 on display at the Patuxent River open house air show
Convair 880
Right side air to air view of the Navy's Convair UC-880 from Naval Air Test Center Patuxent River
Convair 880
Convair UC-880, the only one in US Navy service, refuelling an F/A-18A Hornet (Patuxent River, Tomahawk and refuelling trials)
Convair 880
US Navy Convair UC-880 refuelling an F-14D Super Tomcat, August 1992 (Naval Air Test Center, Patuxent River)
