Vickers VC10 variant

Vickers VC10 BAC Super VC10 Type 1151

BOAC's Super VC10: 3.96 m more fuselage, more powerful Conway engines and an extra tank in the fin. Seventeen built.

Vickers VC10 sheet

Image pending
May 7, 1964
First flight
17
Units built
7,596 km
Range
174
Passengers

History

From Super 200 to Super VC10

To improve seat-mile costs, Vickers worked on a Super 200 with more powerful Conway engines and 8.5 m more fuselage, seating up to 212. BOAC, already doubting it could fill the 35 VC10s on order, did not believe in a two-hundred-seat aircraft. The stretch was cut to 3.96 m and so the Super VC10 (Type 1150) was born; the original design then became the Standard.

A laborious development

The first Super flew from Brooklands on 7 May 1964. Although on paper a minor development of the Standard, testing dragged on: each engine pair had to be moved 27 cm outboard and upwards, and given a three-degree twist, to cure the tailplane buffeting and fatigue caused by the thrust reversers. The wing gained 3% more area through a leading-edge extension that improved low-speed lift and reduced high-Mach drag.

Career

BOAC received seventeen Type 1151s between 1965 and 1969. One was lost in the Dawson's Field hijackings in 1970. Retirement of the British Airways fleet began in April 1980 and finished the following year: fourteen of the fifteen survivors were sold to the RAF in May 1981, and another was preserved at Duxford. Five of those stored airframes were converted into K.4 tankers in the early 1990s.

Multimedia

Super VC10 Type 1151 G-ASGC of BOAC seen from the frontAndrew Thomas from Shrewsbury, UK (CC BY SA), vía commons

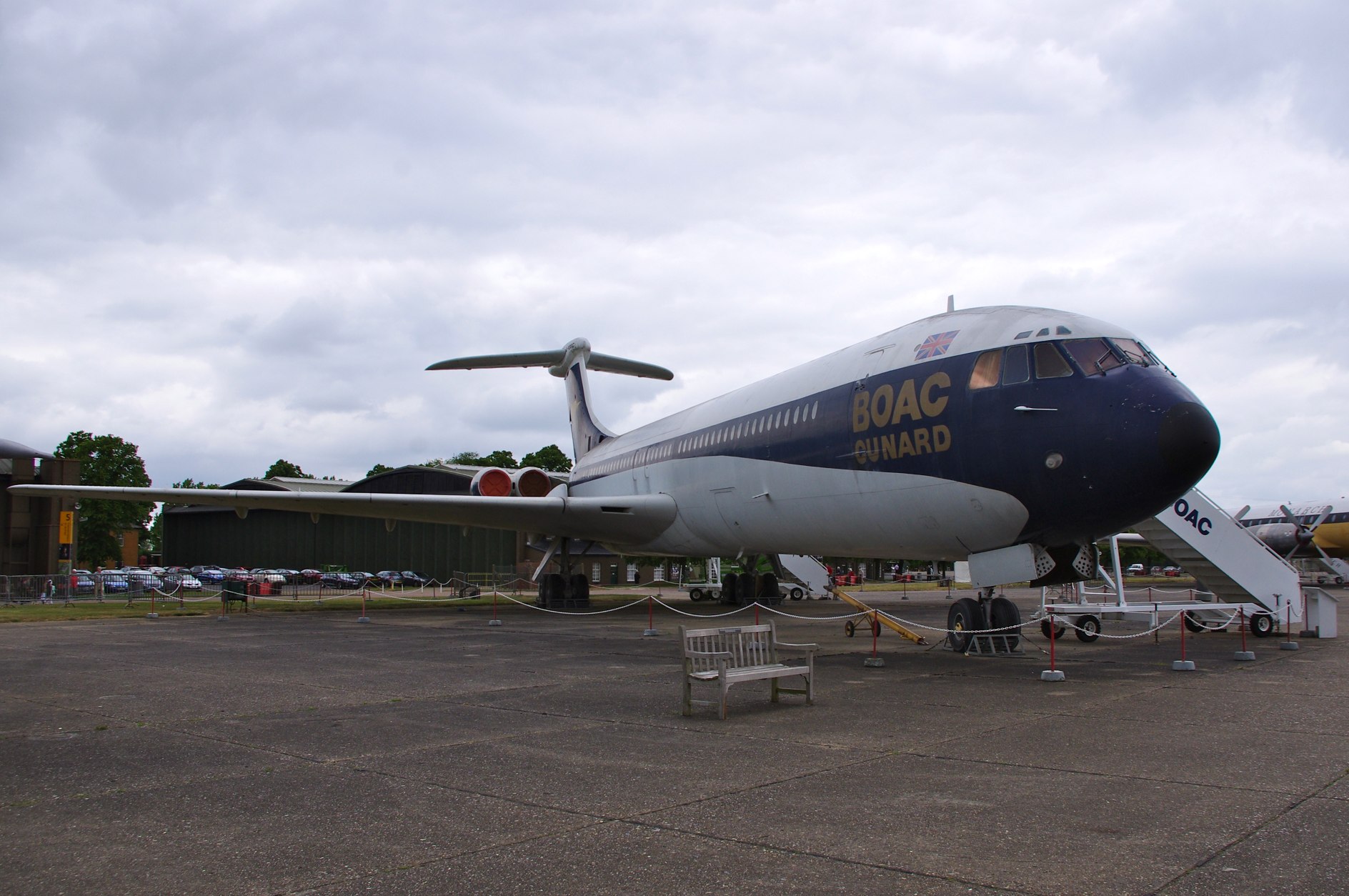

BAC Super VC10 Type 1151 G-ASGC in BOAC-Cunard coloursDavid Merrett from Daventry, England (CC BY), vía commons

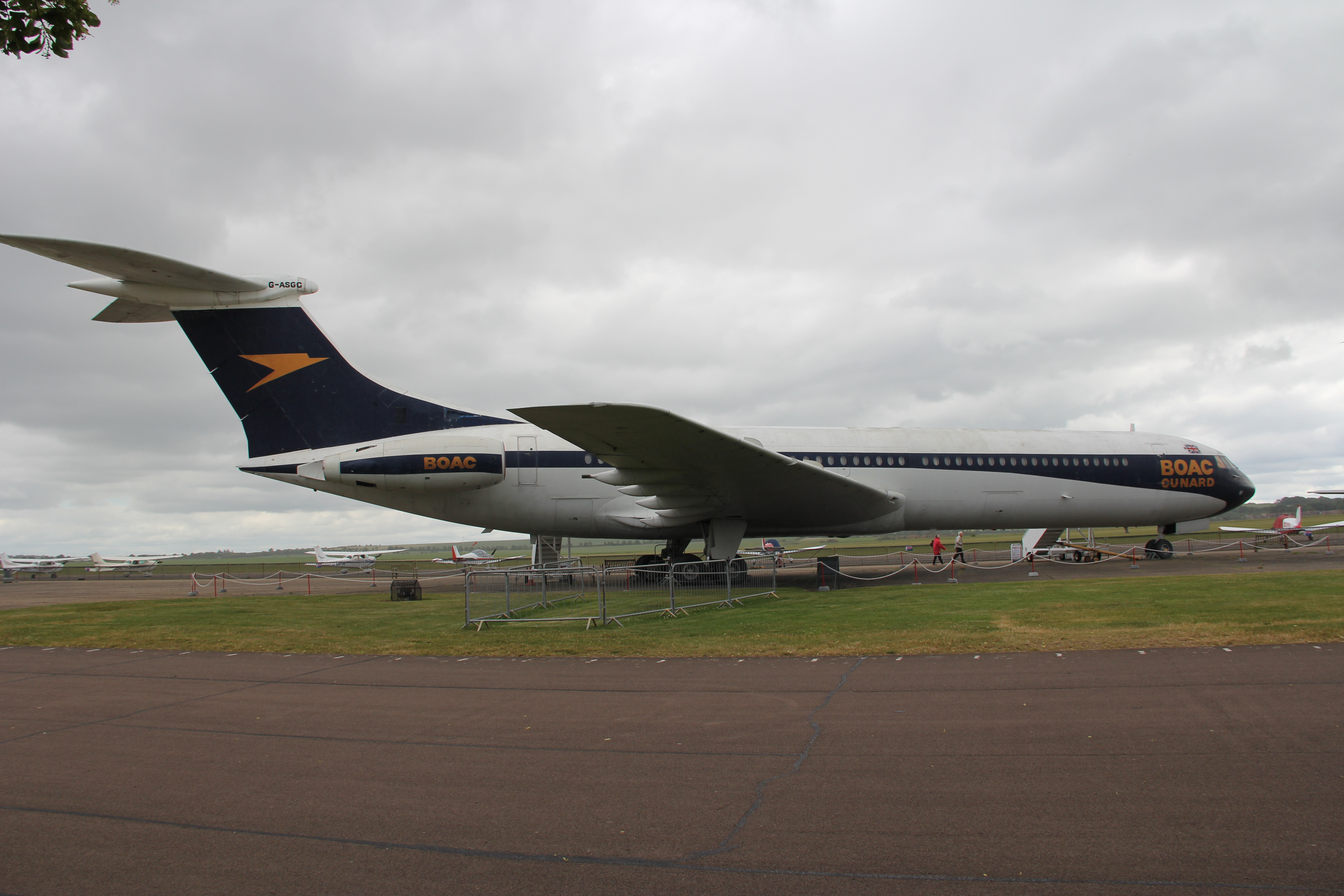

Vickers Super VC10 Type 1151 G-ASGC preserved at DuxfordClemens Vasters from Viersen, Germany (CC BY), vía commons
